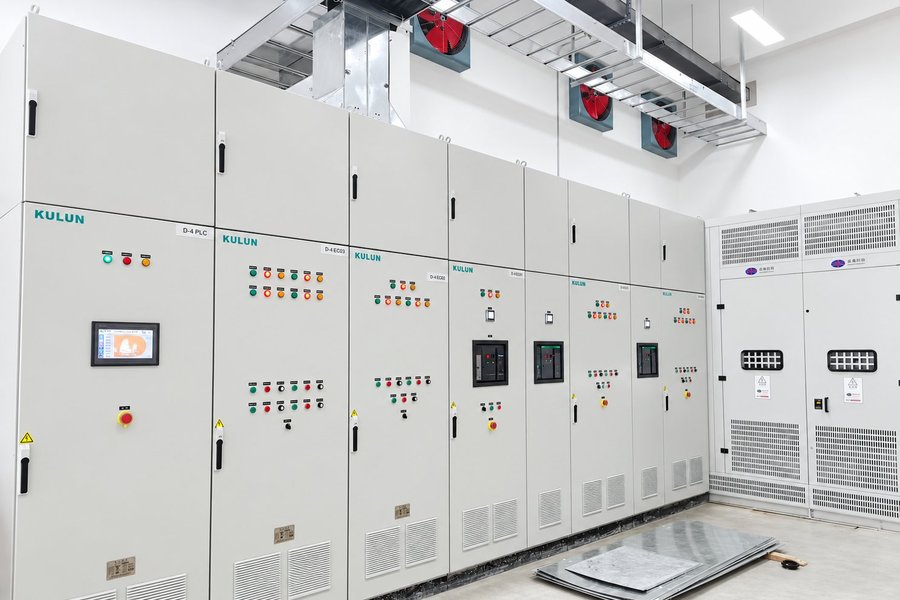

Bottom line first: an HV power control cabinet is not a catalogue product, and its price is set by voltage class, power rating, main power semiconductor configuration, insulation structure, cooling method, control and protection package, and the degree of project customisation. Two cabinets both labelled "10 kV" can be completely different inside, and the price gap can be large. Asking "how much does one cost?" therefore produces no useful answer — the configuration boundaries have to be aligned before prices can be compared. This article breaks the cost down, explains each variable that moves the price, and lists the parameters to send with an enquiry.
Many buyers open with a single question: "What does a 10 kV power control cabinet cost?" The honest answer is that the price of an HV controller is project-level, not shelf-level. The sections below explain where the money goes.
Why does the voltage class drive the base cost?
Voltage class comes first. Common HV power control systems are built for 3 kV, 6 kV, 6.6 kV and 10 kV. As the class rises, the requirements on insulation, creepage distance, clearance, number of series thyristors, trigger isolation and overvoltage protection all rise with it.
A 10 kV system, for example, needs more series thyristors than a 3 kV one, a more elaborate voltage grading design and a higher insulation level. An HV cabinet is therefore not priced simply by its physical size: the ability to withstand voltage is itself a major cost driver.
How do power rating and rated current affect main circuit cost?
The second factor is capacity. Three-phase power follows P = √3 × U × I × cosφ, so once the voltage is fixed, a higher power rating means a higher rated current. As current rises, the following parts must be upgraded together:
- thyristor current rating;
- busbar cross-section;
- cables and terminals;
- heat sinks;
- air or water cooling system;
- HV switching and protection devices.
A 1 MW and a 10 MW 10 kV cabinet do not share the same main circuit current, cooling capacity or semiconductor ratings, so they are not in the same cost bracket. This is why "10 kV" alone is not enough for an enquiry — the rated power or rated current must be given as well.
Why are thyristor count and grade the core hardware cost?
HV power control cabinets normally use series-connected thyristors to control high-voltage AC power. A single device has limited blocking capability, so a higher system voltage requires more devices in series. The cost of the thyristor section depends not only on the number of devices, but also on:
- rated voltage;
- rated current;
- surge current capability;
- dv/dt capability;
- brand and parameter consistency;
- whether devices are screened and matched;
- whether voltage and current margins are reserved.
Once thyristors are connected in series, the design must also add static grading, dynamic grading, RC snubbers, trigger isolation and overvoltage protection. In practice, the supporting circuits of a mature HV power stage often cost more than the thyristors themselves.
What are the cost blocks of an HV power control cabinet?
Pulling the above together, the cost of one cabinet can be grouped into six blocks:
| Cost block | Main content | Driven by |
|---|---|---|
| Power semiconductors | Thyristors, heat sinks, fast fuses | Voltage class, current rating, number in series, brand and screening |
| HV primary devices | Incoming switch, instrument transformers, busbars, insulators | Voltage class, capacity, connection scheme |
| Cabinet and insulation | Enclosure, insulating supports, HV/LV separation, interlocks | Clearance, creepage, IP rating, compartment layout |
| Cooling | Air or water circuit, monitoring and protection | Losses, ambient conditions, cooling method |
| Control and protection | Controller, sensors, communication, protection logic | Control accuracy, protection completeness, communication and interlocking |
| Testing and customisation | Type tests, routine tests, application engineering | Project conditions, certification, degree of customisation |
Why do insulation and cabinet structure account for so much?
Low-voltage controllers can often be built compactly, but HV equipment must respect phase-to-phase insulation, phase-to-earth insulation, clearance, creepage distance, insulating supports, HV/LV separation, compartmentalisation, and interlocks against incorrect operation.
At 10 kV in particular, internal layout cannot simply be compressed. A cabinet that looks generously sized is usually meeting HV safety distances and maintenance access requirements rather than wasting space. Enclosure, insulating materials and HV structural design are therefore a real part of the price.
How does the cooling method affect cost?
Conducting thyristors dissipate losses, and the higher the power and current, the more important thermal design becomes:
| Cooling method | Characteristics | Typical application |
|---|---|---|
| Natural convection | Lowest cost, simplest structure | Small power ratings |
| Forced air | Widely used, easy to maintain | Low to medium power, standard conditions |
| Water cooling | High capacity, needs water circuit and monitoring | High current, high power |
| Combined air/water | Complex system, higher cost | Special high-power duty |
Water cooling additionally requires a water circuit, flow monitoring, temperature monitoring and leakage protection. For high-power HV cabinets, the cooling system is a cost item that cannot be ignored.
How do control accuracy and functions affect the "software" cost?
Requirements differ widely between projects. A basic configuration may need only setpoint control, voltage feedback, current feedback and basic alarms. A demanding project may require constant-voltage control, constant-current control, constant-power control, PID regulation, soft start, power limiting, multi-zone power distribution, Modbus communication, PLC interlocking, SCADA monitoring and remote diagnostics.
If several cabinets have to be coordinated, control complexity rises further. Two cabinets with the same power rating can therefore differ noticeably in price purely because of different control functions.
How does the protection package affect reliability and cost?
An HV power control cabinet is not complete just because it can regulate power. A mature system also provides overcurrent protection, overvoltage protection, phase-loss protection, over-temperature protection, cooling failure protection, fast fuse protection, thyristor fault detection, HV interlocking, door interlocking and emergency stop.
The more complete the protection, the more sensors, protective devices and control logic are required. This part of the cost is not the most visible, yet it often determines whether an abnormal condition ends in a controlled shutdown or in destroyed power semiconductors.
Why is project customisation one of the biggest price differentiators?
HV power control cabinets are normally built to the project. Typical questions include:
- Does it connect directly to the HV network?
- Is an incoming switch included?
- Is a transformer part of the scope?
- Is a bypass required?
- Is multi-pulse control required?
- Is water cooling used?
- Is the site at high altitude?
- Are there high ambient temperatures, dust or corrosive atmospheres?
- Is outdoor installation required?
- Is remote communication and DCS interlocking required?
Every one of these changes the solution. Two systems both described as "10 kV, 5 MW" can differ substantially in price if their operating environment and control requirements differ.
Which parameters should you provide when requesting a quotation?
For a quotation that reflects the real project cost, provide at least the following:
| Parameter | Purpose |
|---|---|
| Input voltage | Fixes the voltage class |
| Rated power | Fixes the equipment capacity |
| Maximum current | Fixes thyristor and busbar ratings |
| Load type | Determines control and protection scheme |
| Connection scheme | Determines main circuit structure |
| Control mode | Determines control system configuration |
| Cooling method | Determines the thermal design |
| Operating environment | Determines enclosure and insulation level |
The more complete the information, the closer the quotation will be to the final project cost.
FAQ
Q: How much does a 10 kV power control cabinet cost?
A: No meaningful figure can be given from the voltage class alone. The price depends on rated power, number and grade of series thyristors, cooling method, completeness of the protection package and the degree of customisation; two cabinets both labelled 10 kV can differ by a multiple. The correct approach is to send the full parameter list and ask for a project-level quotation rather than a price per cabinet.
Q: Why do two systems both specified as 10 kV, 5 MW differ so much in price?
A: Identical nameplate ratings do not mean identical configuration. An incoming switch, a step-up or step-down transformer, a bypass circuit, air versus water cooling, a normal indoor site versus high altitude, high temperature or dusty conditions, and basic setpoint control versus constant-power control with DCS interlocking all change the solution and the cost. Before comparing prices, check that both quotations cover the same scope of supply.
Q: Can I compare HV power control cabinets on a cost-per-kilowatt basis?
A: Not reliably. A large part of the cost — insulation structure, enclosure, trigger and protection circuits — scales with voltage class rather than with power, and the number of series thyristors increases in steps as voltage rises. Cost per kilowatt is therefore not comparable across different voltage classes or power bands and can easily mislead a selection decision.
Q: Is the lowest quotation actually the cheapest option?
A: Be careful with quotations that are low because scope has been cut. If thyristors carry no voltage or current margin, grading and protection circuits are simplified, or cooling is sized for a borderline duty, the initial saving is usually outweighed by device failures and unplanned downtime later. When evaluating an offer, check the device brand and ratings, the protection schedule and the test scope alongside the price.
Timeliness note
This article reflects general engineering practice and market conditions as of September 2026. It discusses cost structure and price drivers only and does not constitute a quotation or price indication. Prices vary with raw material and component markets, project conditions and configuration, so the only valid figure is a formal quotation issued against a complete parameter set.
